PRODUCT DETAIL

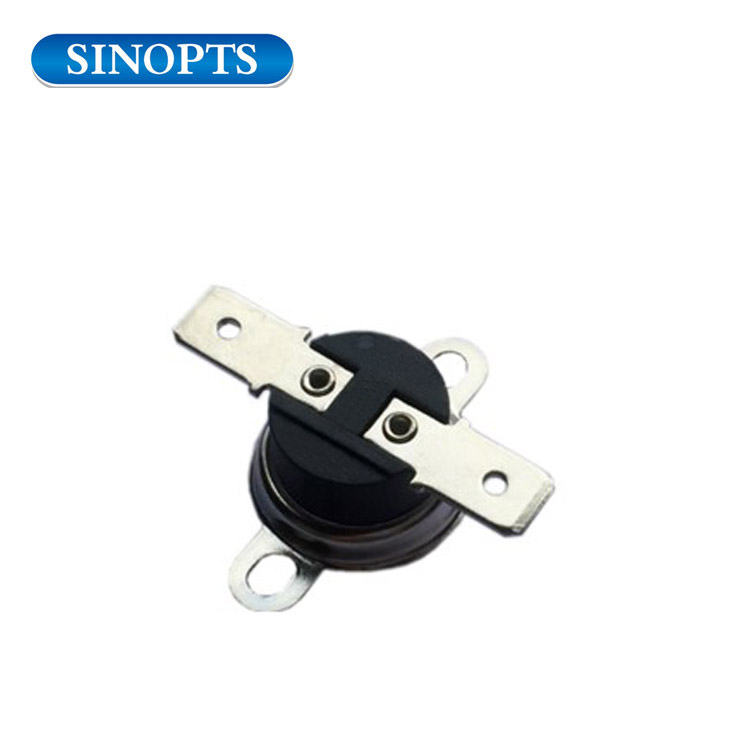

Bimetal Bent Terminal Momentary Thermostat

Share to:

Rated Voltage/Current	AC125/250V 5A/10A/16A
Switching temperature	45~185℃
OFF manufacturing deviation	±2~10℃
OFF-ON temperature difference	45~185℃
ON manufacturing deviation	±3~10℃
Electrical strength	AC250V lasted 3 seconds without flashover
Insulation resistance	≥5MΩ
Contact resistance	≤50MΩ
Maximum ambient temperature	PF180℃,UP/PPS 220℃,EC250℃(24 hours)
Operation cycles	≥100.000
