PRODUCT DETAIL

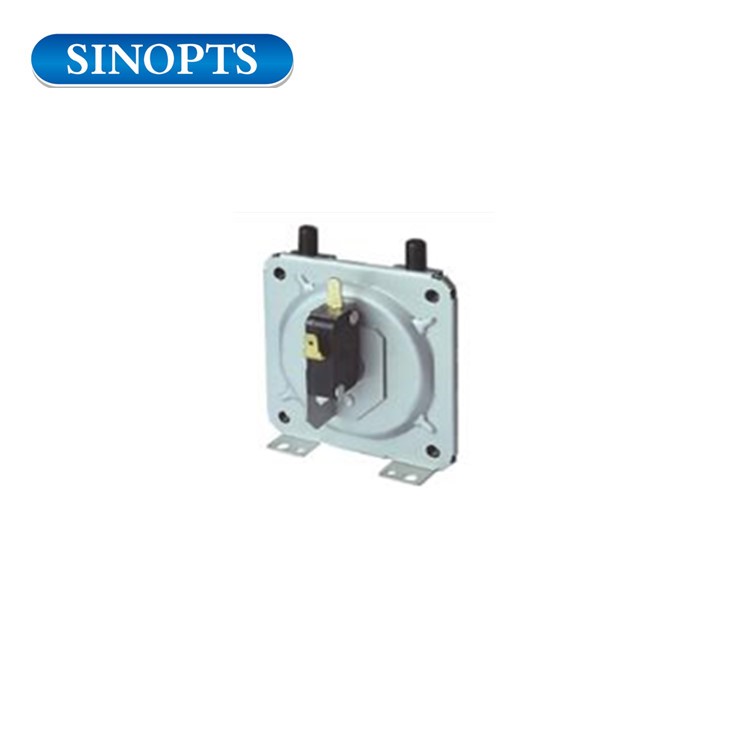

Adjustable Differential Air Flow Pressure Switch

Share to:

Max. Voltage:220V
Max. Working Pressure:10-1500Pa
Product name:air pressure switch
Application:water heaters/ air conditioner / boiler
Color:Black/White
Certification:ENEC/CQC
Switch Rating:0.1A-16A, 125/250V
Temperature:-40~+90℃
Media:air
Type:micro switch
Operating Pressure Range:25-1500Pa
Switching Pressure Range:10Pa Min.

Model:
SNAPS-2701
Brand:
SINOPTS

Availability:



Inquire Add to Basket

Product Description

Air Pressure Switch
Operating Pressure Range: 25-1500Pa
Switching Pressure Range: 10Pa Min.
Application: Boilers, water heaters, HVAC, other industrial equipments

Set Point: 10-1500Pa
Operating Pressure Range: 25-1500Pa
Switching Pressure Range: 10Pa Min.
Maximum Pressure:4000Pa
Rating: 0.1A 125/250VAC, 3A 125/250VAC 5A 125/250VAC, 16A 125/250VAC

Circuit Configuration: SPDT ; SPST-NO ; SPST-NC
Operating Temperature: -40~+90℃
